When a wet joint (caulked) design is preferred, the EV-A.60 Wet Sealed System, (formerly the RRWET system) is the choice. Designed with continuous perimeter extrusions, the EV-A.60 system allows for quick attachment to the substructure. No requirements for additional clip layout. The interlocking perimeter extrusions run along all sides of the panels, creating conditions for ideal panel-face registration alignment without expending additional field labor. As tested to AAMA 501 standards, the EV-A.60 Wet Sealed System provides a good barrier wall option to your design needs.
EV-A.60 Wet Sealed System Design Guide [.pdf]
EV-A.60 Wet Sealed System Design Guide [.dwg]
EV-A.60+ Wet Sealed System Design Guide [.pdf]
EV-A.60+ Wet Sealed System Design Guide [.dwg]
WET Revit Family [.zip]

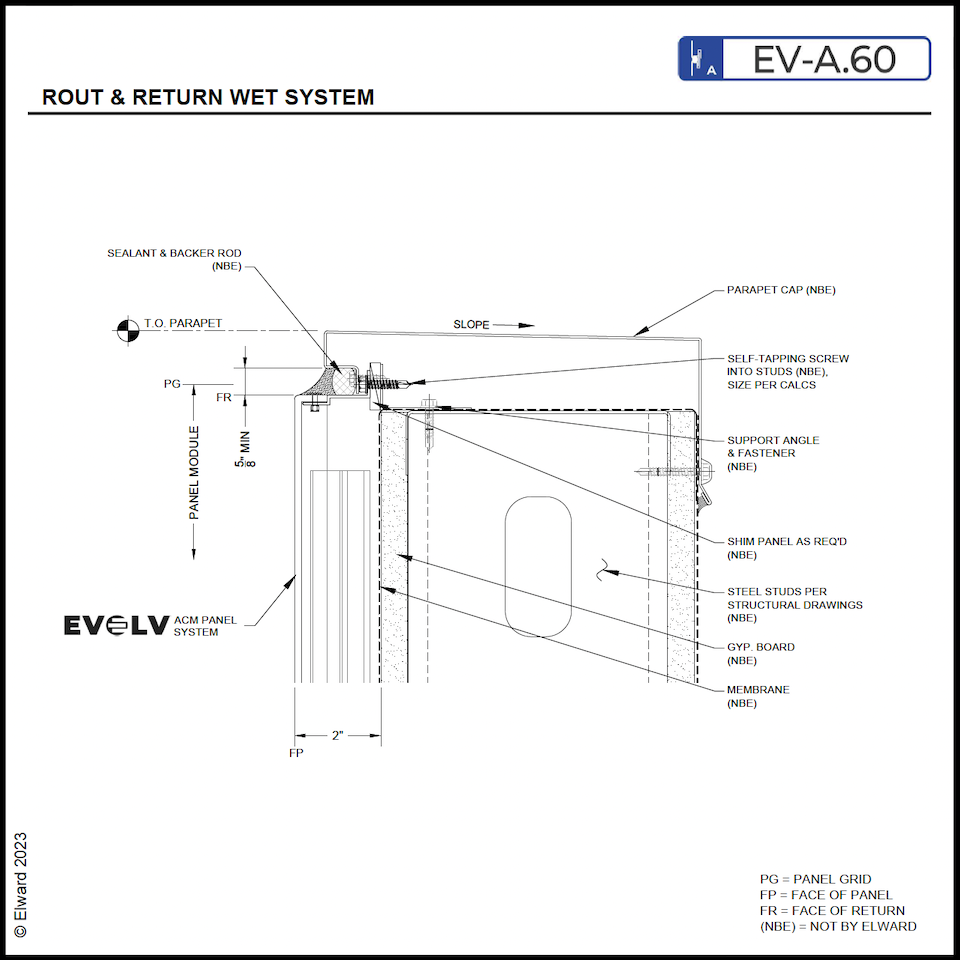

TIP: Click on a letter to display a detailed image on the right.
