The EV-H.10 Exposed Fastener System, (formerly the ESC 110 system), is a face fastened Drained and Back Ventilated Rainscreen utilizing TRESPA high pressure laminate (HPL) material. TRESPA is a solid and sturdy material that is highly scratch and impact-resistant with an intergraded decorative surface, cured with proprietary EBC technology producing a low-maintenance finish that is easy to clean. The material is available in 8mm, 10mm and 13mm thicknesses and is mounted on a provided engineered grid system, utilizing aluminum extrusions. With the wide range of colors and fasteners available, the design choices are endless.
EV-H.10 Exposed Fastener System Design Guide [.pdf]
EV-H.10 Exposed Fastener System Design Guide [.dwg]
EV-H.10+ Exposed Fastener System Design Guide [.pdf]
EV-H.10+ Exposed Fastener System Design Guide [.dwg]
110 Revit Family [.zip]

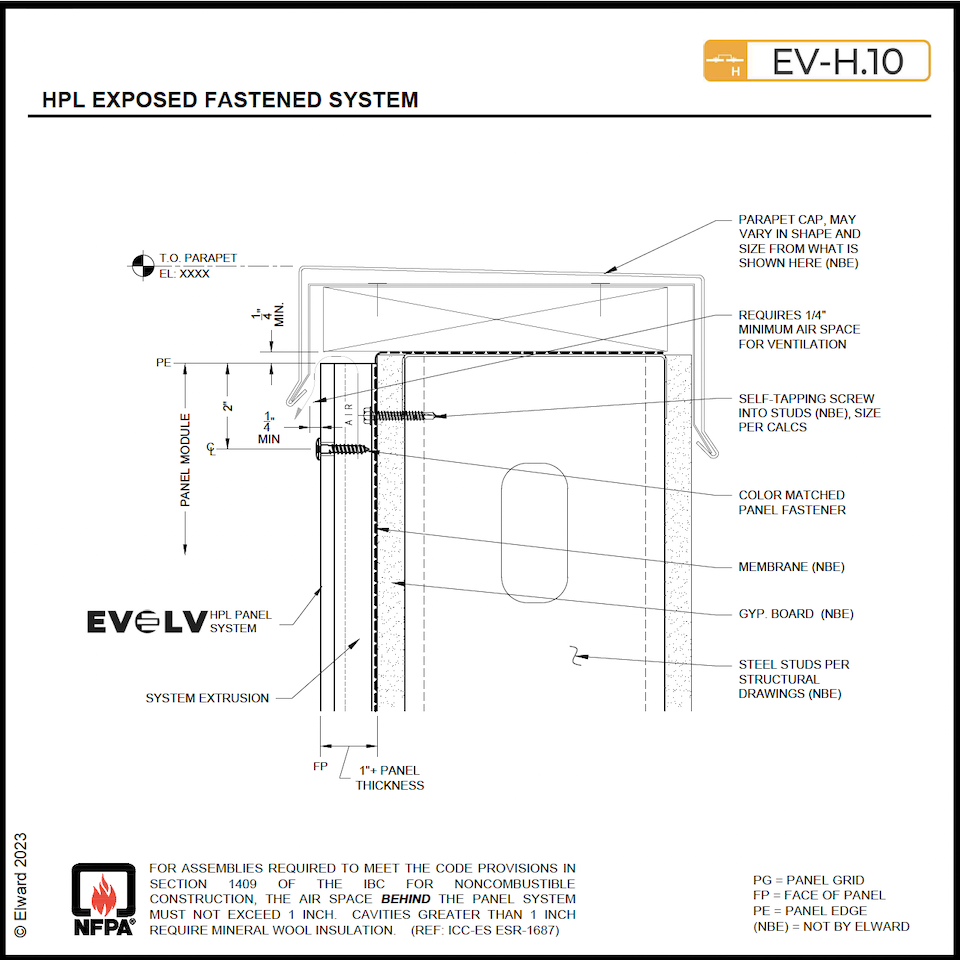

TIP: Click on a letter to display a detailed image on the right.
